Description

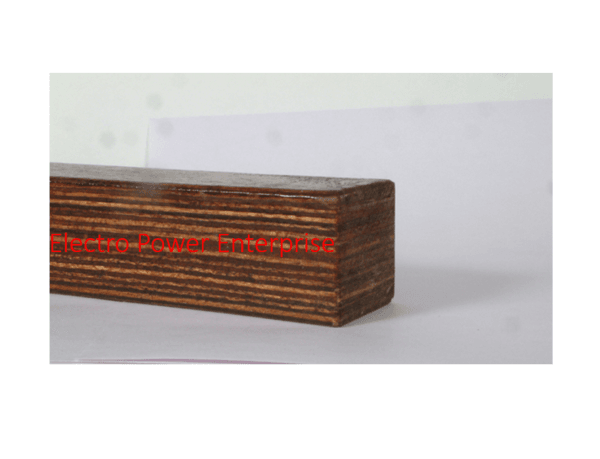

Permali Densified Wood Coil Supports
Electro Power Enterprise manufactures and supplies high-strength Permali (densified laminated wood / Compreg) coil support beams and restrainers engineered for induction melting furnaces.
Physical Properties
| Property | Standard Specification |
|---|---|
| Material Grade | Densified Laminated Wood (Permali / Compreg) |
| Specific Density | 1.25 to 1.35 g/cm³ |
| Bending Strength | 120–150 N/mm² |
| Compressive Strength | 140–180 N/mm² |
| Dielectric Strength | > 10 kV/mm |
| Operating Temperature | Up to 120°C Continuous |
| Water Absorption | < 1.5% after 24 hrs |
Available Sizes & Configurations
- Vertical and horizontal coil support beams machined to exact crucible dimensions
- Custom tie rod clamping blocks, coil spacer blocks, and base supports
- Available thicknesses: 15 mm to 100 mm; lengths up to 2000 mm
