Induction Furnace Thyristors

Induction Furnace Thyristors

SCR stands for Silicon Controlled Rectifier, a semiconductor device that can carry high current and voltage for many industrial applications. We are a leading supplier of phase control products in demanding induction furnace markets. These devices are optimized to give low conduction losses and are primarily intended for applications with line frequencies up to 50 Hz to 10000 Hz

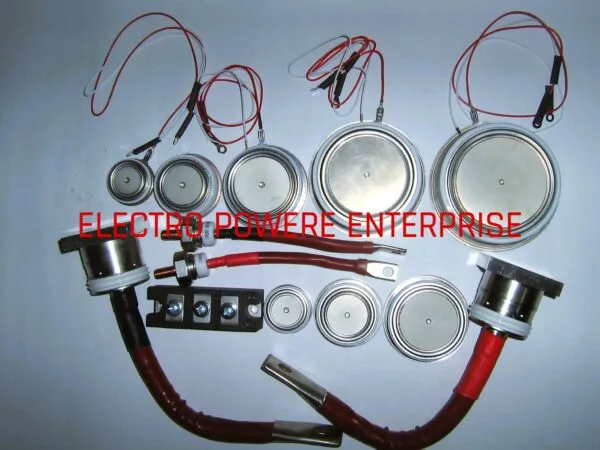

We have different types of Induction Furnace Thyristors suitable for Inductotherm, Electrotherm, and Megatherm induction furnaces. We provide one of the most comprehensive ranges of standard phase control & inverter grade Thyristor in the industry. A device with voltage ranges from 600V to 4500V is readily available, making them suitable for applications with line voltage from 230V to 1000V.

We are a leading supplier of Induction Furnace Inverters Thyristors, Induction Furnace Phase Control Thyristors, Induction Furnace Fast-Switching Thyristors, Induction Furnace Thyristor Devices, and Induction Furnace Stud Thyristors.

Category:

Description

Voltage Range600V to 6000V
Current Range130A to 6000A
TechnologiesStud / Capsule devices (fast & standard recovery, GTO)
TopologySingle
PackagesCapsules & Stud devices

Specification:

  • All of them boast of diffused structure.
  • Centre Amplifying Gate Configuration.
  • The turn off time is always guaranteed.
  • The DV / DT capability is very high.
  • The DI/ DT capability is equally high too.
  • In terms of the surge ratings, we maintain high standards.
  • These are among the most selected devices for induction equipment.

Download SCR LIST pdf file



TYPE/MODELVRRM/VDRM
(Volt)
ITAVG
(Amp)
ITAVG
(Amp)
I2T (A²S)Tq (µs)di/dtdv/dt
(V/µs)
SIZE MM (DIA/HT)
INVERTER SCR C770L HIGH POWER2000210032977100X 10³80(A/µs)80073/36
INVERTER SCR REP0964LS12E12009641950415X 10³2580050034 / 27
INVERTER SCR REP0809LS12A12008801690387X 10³1080050034/27
INVERTER SCR REP 1178NS14E1400118020001060X 10³2580050047/27
INVERTER SCR 10710-0211400118020001060X 10³1580050047 / 27
INVERTER SCR REP0633YS16N16005601125240X 10³1080050025/15
CONVERTER SCR C431 PM1600600940235X 10³-40020025/15
STARTING SCR H150TB1616001502354200-500-
STARTING SCR MODULE SKKT500/16E160050010001805X10³-2501000150 mm L X 60 mm W X 49 mm H
STARTING SCR MODULE SKKT250/16E1600250566405X10³-2501000115 mm L X 50 mm W X 52 mm H
STARTING SCR MODULE SKKT162/16E1600162260135X 10³-150100094 mm L X 34 mm W X 30 mm H
STARTING SCR SKKT1000/16E16001000148443X 106-100800180mm L X 77 mm W X 84mm H
SCR Diode Module SKKH162/16E1600156145X 10³150200100094mm L X 30mm H
INVERTER SCR C712L2000118517001660X 10³4080080047/27
INVERTER SCR REP0878LS20E20008801765340X 10³25100050034/27
CONVERTER SCR C781L2000250039258500X10³-30050073/36
CONVERTER SCR NEP1547NS2002000154724003280X 10³-40040047 / 27
CONVERTER SCR NEP0910LS200/C440L20009101400700X 10³-40020034/27
INVERTER SCR REP2619ZC21K2100261944006920X 10³501000100073/36
INVERTER SCR REP1275NS21H2100129325001450X 10³401000100047/27
INVERTER SCR 80009625002619-801000100073/36
CONVERTER SCR NEP1467NS2602600146729152780X10³---47/27
CONVERTER SCR NEP0910LS26026009101400700X 10³-40020034/27
CONVERTER SCR NEP2543ZC3003000254349307610X10³-30073/ 36
CONVERTER SCR NEP0882NC42042008801725359X10³-40040047/27
CONVERTER SCR NEP1661VC424200161132592.6X10655015050063/34
CONVERTER SCR NEP1159NC420/08824200115917240.3X10685020050047 / 27
CONVERTER SCR NEP630CH424200166332613130X 10³-30040063/36
INVERTER SCR 80021845003800580012X 1062502001000100/36
INVERTER SCR REP2619ZC21J21002619522712X 10665150020073/36
INVERTER SCR REP0633YS16A16005601125240X 10³1080050025/15
CONVERTER SCR DCR 2760 V28-NBR2800276043309.25×103600100073/26
STARTING SCR MODULE SKKT 106B/18E180010620025 x 103100150100093 mm L x 20mm W x 30 mm H
STARTING SCR MODULE SKKT 273/16E1600273450405 x 1031501301000115 mm L x 50.3 mm W x 52 mm H
